Scanning acoustic microscope

Examples for applications

Scanning Acoustic Microscopy

Non-destructive method for detecion of microscopic and macroscopic defects.

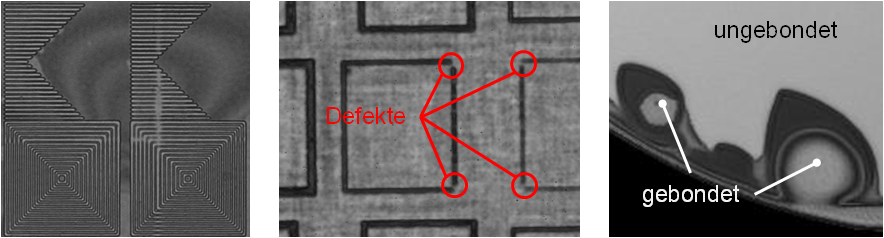

New applications in the field of micro systems technology require a hermetically sealed package with a high mechanical strength in order to ensure functionality of these systems. Bonding defects like voids, air inclusions and impurities in the interface can cause a local degradation of the bond. Due to the formation of cracks, the functionality may deteriorate as well, causing premature failure of the device. The Scanning Acoustic Microscopy (SAM) is a nondestructive method for the detection of these microscopic and macroscopic defects. It enables the characterization of the bond interface during manufacturing process at chip and wafer level and thereby increases the yield. An additional field of application is the analysis of single chips in order to detect defects directly related to cyclic, thermomechanical loading of the MEMS devices for a noninvasive reliability analysis.

Advantages of the test method

  • Nondestructive Analysis of chips and wafers with multi layers
  • Characterization of systems with metallic interlayers
  • Detection of defects in housed MEMS (even after Thermal cycling)
  • Surface analysis using ultrasonic special transducers

The Fraunhofer ENAS offers analysis, utilizing an ultrasonic scanning acoustic microscope SAM 300 E of PVA TePla Analytical Systems GmbH. The measurements can be carried out for chips as well as wafers with a 4”, 6”, 8” and 12” diameter.

Examples of ultrasonic transduces

transducer

depth of penetration

resolution

field of application

110 MHz

large

medium

detection of defects, voids, impurities, cracks in the bond interface of MEMS devices

175 MHz

medium

high

20 MHz

large

small

100 MHz

surface

medium

surface characterization

400 MHz

surface

High

specification



maximum substrate size

320 x 320 mm²

wafer carrier

4", 6", 8" and 12"
