Tactile Profilometry

Compared to atomic force microscopy (AFM) and optical measurement methods (such as chromatic white light), the characterization of surfaces using a surface profilometer is a tactile measurement method. This means that a stylus applies a defined force to the sample surface and moves along a predetermined path at a preset speed. The system records the vertical movements of the stylus during the measurement, with the resulting data presented as a profile over the measured distance.

The system records the vertical movements of the stylus during the measurement, with the resulting data presented as a profile over the measured distance.

Based on the measured profile, various parameters can be calculated using specific software:

  • Roughness (Ra, Rq, Rz, Rt, Rv, Rp)
  • Step heights
  • Layer thicknesses
  • Waviness

© Veeco

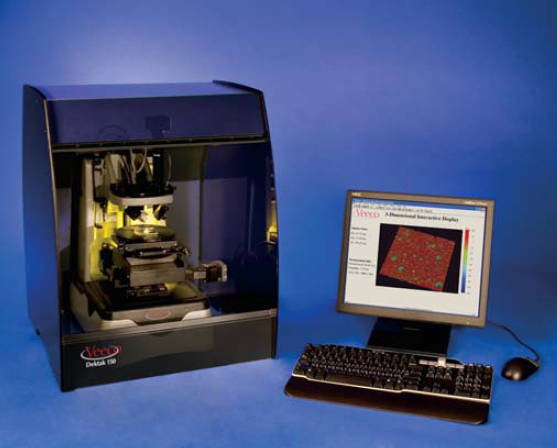

Dektak 150 Veeco

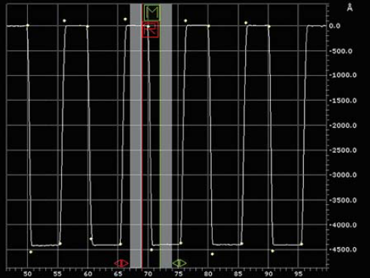

DEKTAK Exemplary step measurement.
© Fraunhofer ENAS
Exemplary step measurement

Technical data:

  • Scan length: 55 µm – 55 mm
  • Scan time: 3 – 200 s
  • Sample thickness: < 101 mm
  • Contact force: 1 – 15 mg
  • Stylus tip: 2 µm radius
  • Vertical resolution: > 1 Å over a 6.55 µm scan length

Samples:

  • Measurement of wafers (4", 6" and partially 8")
  • Chips/fragments

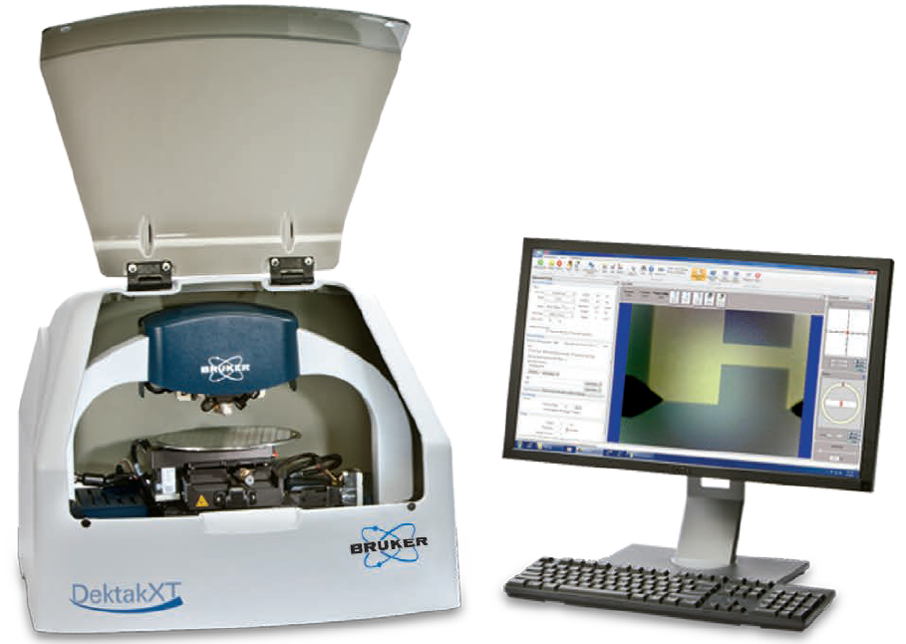

DEKTAK XT Stylus Profiler
© Bruker
DEKTAK XT stylus profiler

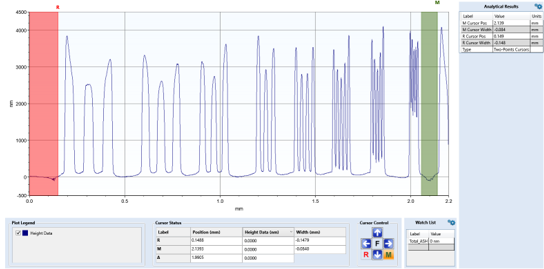

Measurement of different profiles on one sample.
© Fraunhofer ENAS
Measurement of different profiles on one sample
Exemplary 3D measurement of a surface.
© Bruker
Exemplary 3D measurement of a surface

Technical Data:

  • Scan length: ≤ 55 mm, 200 mm using scan-stitching function
  • Scan time: 3 – 200 s
  • Sample thickness: < 101 mm
  • Contact force: 1 – 15 mg
  • Stylus tip: 2 µm radius, 12.5 µm radius
  • Vertical resolution: >1 Å over a scan length of 6.55 µm
  • Step height repeatability: 4 Å, 1 sigma at a step of ≤ 1 µm

Samples:

  • Measurement of wafers (4", 6" and partially 8")
  • Chips/fragments
  • Creation of 3D maps possible
